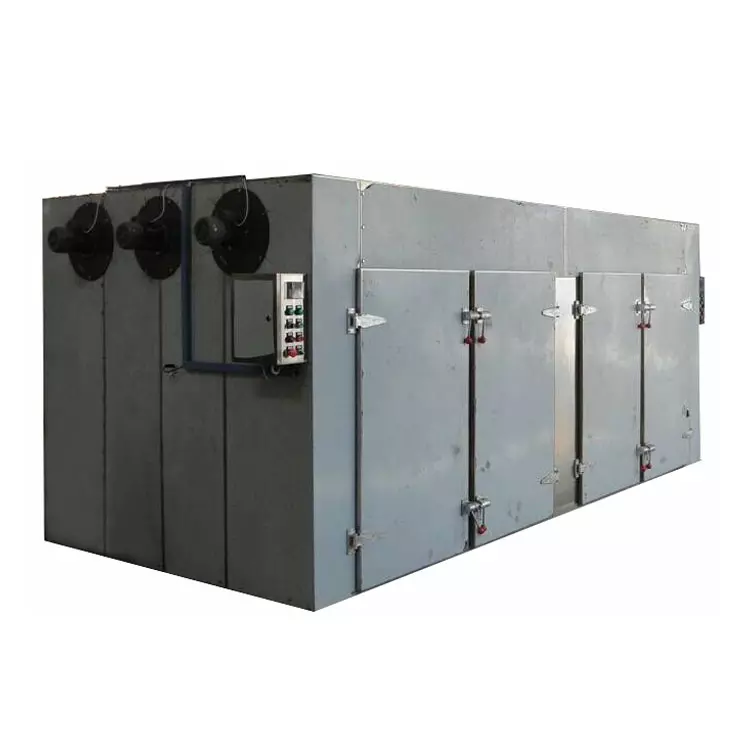

192 Tray Hot Air Circulation Oven Plus

Name:  Hot air circulation drying oven;

Brand:  MayYiTang;

1.Equipment model:  MYT-C-192-2;

2.Voltage: 380V/50HZ3phase(can be customized);

3. 3. Heating method: electric heating;
4. 4. Electric heating power: 60kw;
5. 5. Heating temperature: RT-140 ℃ (adjustable);

6.Timer：0-9999minutes ;

7.Electrical control: intelligent button control；

8.Trays : 384 sets;

9.Tray size: 640mm*460mm*45mm;

10.Trolley：8 sets，dimensions：950mm*710mm*1440mm.

11.Machine size: LWH, 4450*2200*2250mm;2300kg;

Wooden package size estimate：LWH, 4550*2250*2250mm; 2500kg;

12.Machine material： industrial grade stainless steel;

The system achieves uniform and efficient air circulation through fan circulation. The air source is driven by a circulating air supply motor (using a contactless switch) to drive the wind turbine through a heater, sending out the hot air, and then entering the oven chamber through an air duct. After use, the air is sucked into the air duct and becomes a source of air for circulation and heating. ‌

Hot air circulation ovens are widely used in multiple industries, including pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, heavy industry, electronics, automobile manufacturing, wood processing, etc. ‌
