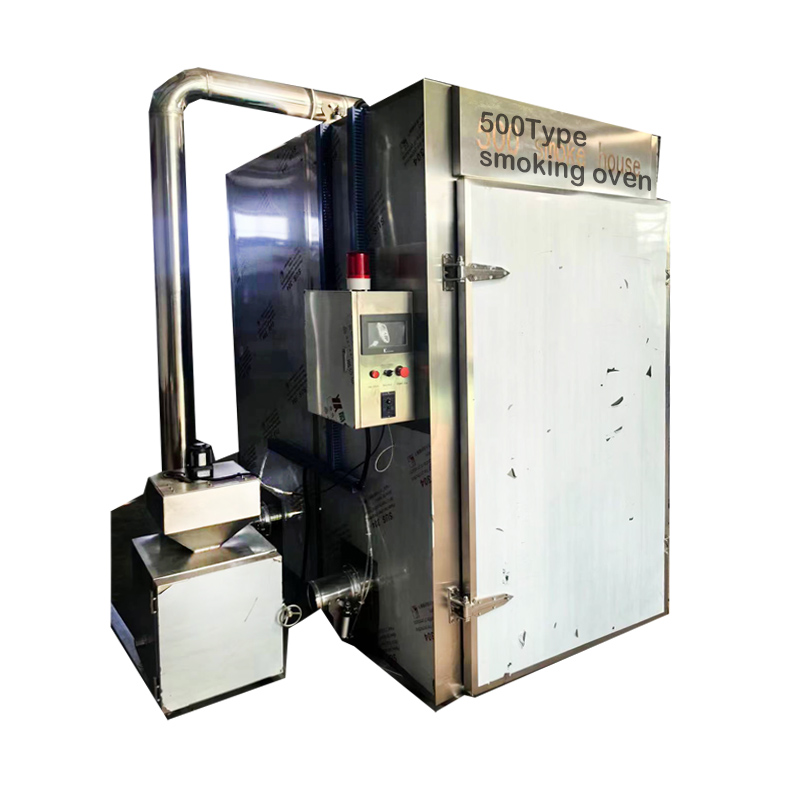

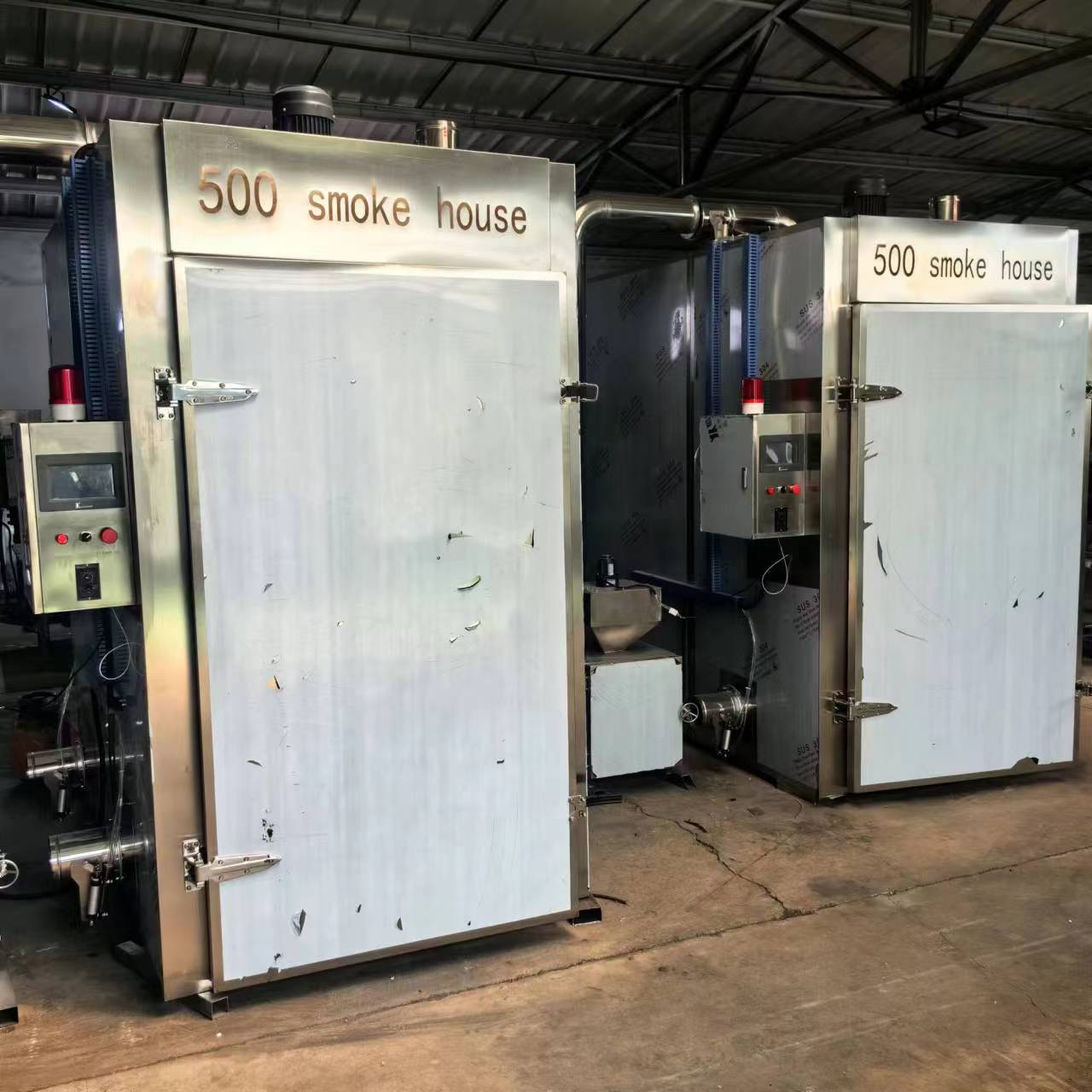

500 Type Smoking oven

Name:Smoking oven

Brand:MayYiTang

Model:MYT-SM500

Application:Smoked, dried, steamed, coloured, sugared, honed, etc.;

Reference parameters

Name： Smoking oven;

Applying : Smoked, dried, steamed, coloured, sugared, honed, etc.;

Model: MYT-SM500;

Brand: MayYiTang;

Trolley size: 1050 *1050 * 1970mm;

Number of trolly: 2 sets;

Heating power: 48Kw;

Voltage: 380V50Hz3P(can be customized);

Temperature range: RT-120℃;

Preferably trolleys – racks for products.

Smoking capacity: 500kg/batch(due to different raw meat materials);

Smoke generators -External Smoke generators type;

The Machine Overall dimension: LWH, 2500 * 2250 * 3000mm;2400kg;

Wooden package size estimate：LWH, 1600*2500*2250mm,2600kg;

Equipment material: industrial grade stainless steel food grade material;
