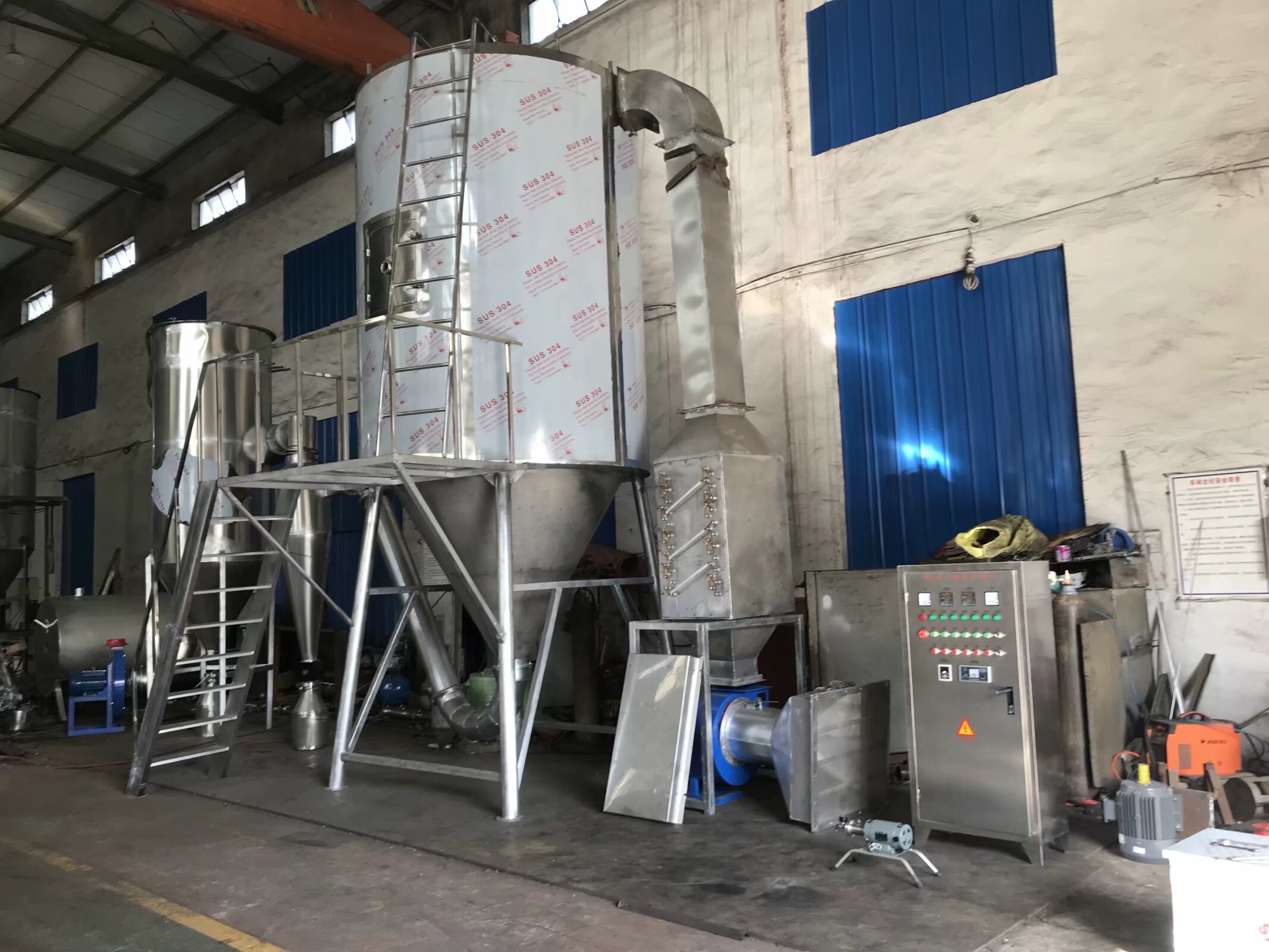

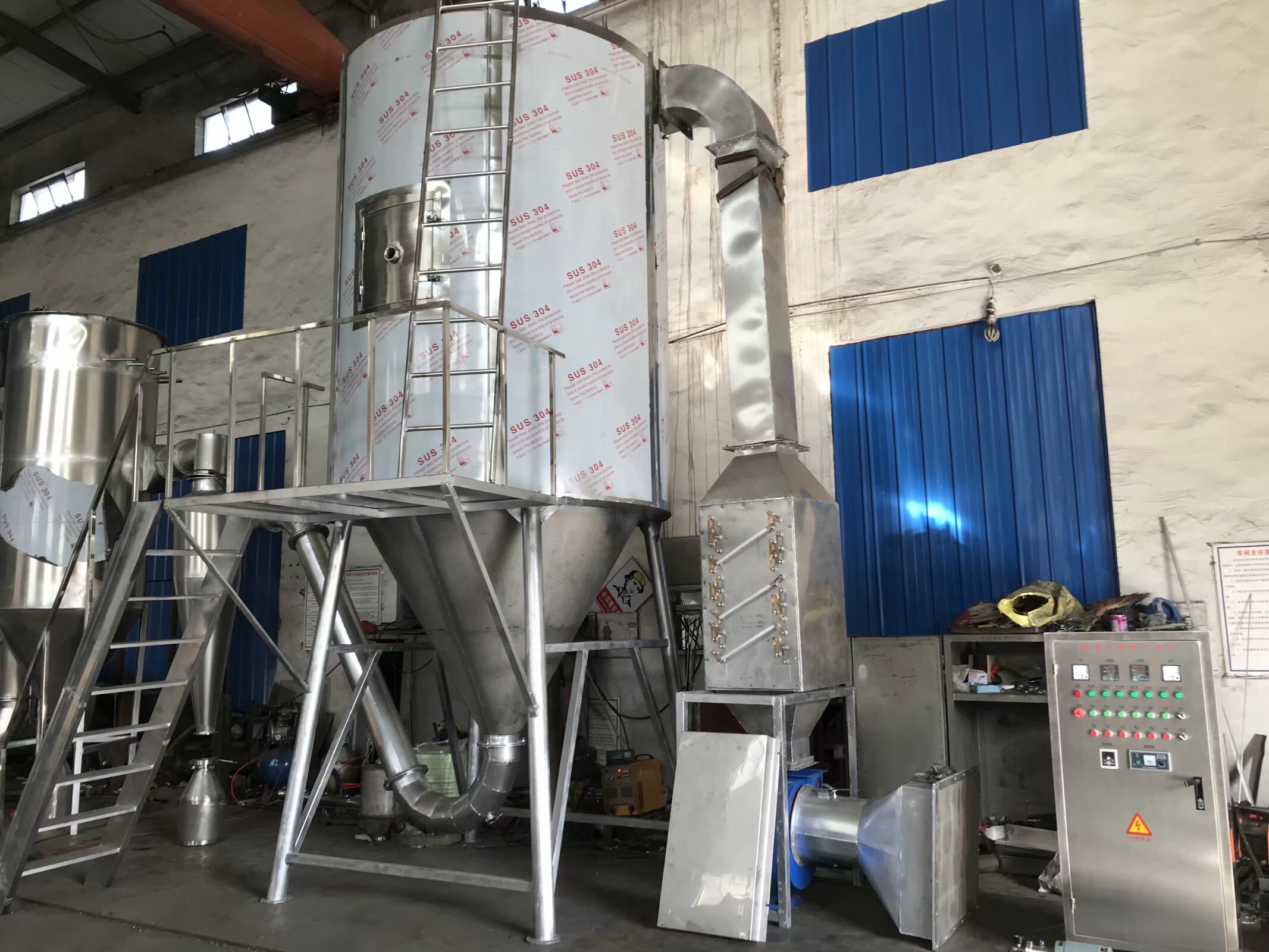

100L Spray Dryer

Name:Spray dryer

Brand:MayYiTang

Model:MYT-SP100L

Application:industrial grade stainless steel food grade.

Reference parameters

Name: Spray dryer;

Brand: MYTuger Rango;

Model: MYT-SP100L;

Voltage:380V,50/60Hz,3Phase;

Max evaporation quantity:about 100Kg/h;

Heat source: LPG Heating; with LPG burning stove;

Heating Capacity: 600000Kcal;

Inlet temperature: 150-200℃(automatically controlled);

Out let temperature: ～80-100℃;

Centrifugal spraying nozzle transmission model: Mechanical transmission;

Spray disk diameter: 120mm;

Atomizer speed: 18000rpm;

Powder recovery: ≧95%;

Powder collector: 1Suit-5L;

Insulating layer: Aluminum silicate,80mm;

Equipment tower body material: industrial grade stainless steel ss304;

Moisture content of the finished product: 3-5% ;

Occupied area(L*W*H): 5200*3500*6700mm; 3150kg;

Loading requirement: need one 40HQ container for loading ;

Certification & Patents
- CE, ISO9001, ISO14001 certification.
- China Environmental Protection Industry Association GREEN STAR certification.
- Environmental protection equipment core technology national invention patents.
Honor & Awards
- Henan Province Famous Trademark.
- Henan Province Brand-name Products.
- Henan Province Environmental Protection Industry Backbone Enterprises.
- Henan Province Pyrolysis Equipment Engineering Research Center.
- Shangqiu City Mayor Quality Award.
14 years experience
- 2 pilot test base, 1 laboratory, well equipped inspection and detection tools.
- Professional team with rich R&D experience in environmental protection special equipment industry.
- Sales area covers 26 provinces and cities of China. Exports to Canada, US, Australia, UK, Peru, Turkey, Hungary and Southeast Asia countries.
