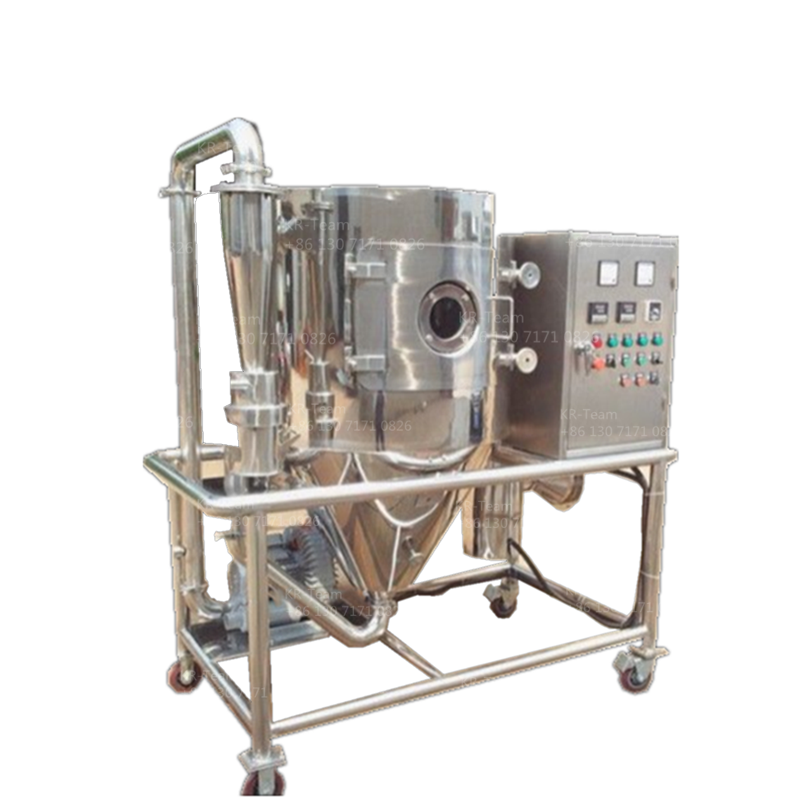

Name:Spray dryer
Brand:MayYiTang
Model:MYT-SP5L
Application:industrial grade stainless steel food grade;
Name: Spray dryer;
Model: MYT-SP5L;
1. Inlet air temperature: 150-300℃ (automatic control and adjustment);
2. Outlet air temperature: 80-90℃;
3. Atomizer speed: 25000rpm;
4. Atomizing disc diameter: 60mm;
5. Finished product recovery rate: more than 99%;
6. Heat source: electricity heating;
7. Electricity power:9Kw;
8. Machine size :2100*1100*1900mm;200kg;
Wooden package size: 2200*1200*2100mm;
Wooden package weight:260kg.
9. Equipment material: industrial grade stainless steel food grade;
Added: 1. All electric components are interlocked control, and the fan is equipped with manual air volume regulating valve;
2. The air inlet is equipped with a filter, and the filter frame is made of SUS304 stainless steel with protective mesh.
Name:Spray dryer
Brand:MayYiTang
Model:MYT-SP25L
Application:industrial grade stainless steel food grade.
Name:Spray dryer
Brand:MayYiTang
Model:MYT-SP50L
Application:industrial grade stainless steel food grade.
Name:Spray dryer
Brand:MayYiTang
Model:MYT-SP200L
Application:industrial grade stainless steel food grade.
Name:Spray dryer
Brand:MayYiTang
Application:industrial grade stainless steel food grade.
