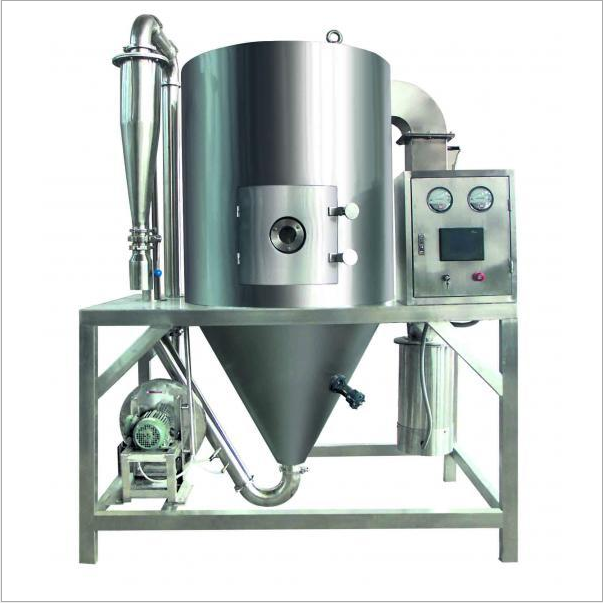

10L Spray Dryer

Name:Spray dryer

Brand:MayYiTang

Application:industrial grade stainless steel food grade.

Chat Online Leave Message

Reference parameters

Name:  Spray dryer;

Model:  MYT-SP10L;

  1. Inlet air temperature: 150-300℃ (automatic control and adjustment);
  2. Outlet air temperature: 80-90℃;
  3. Atomizer speed: 25000rpm;
  4. Atomizing disc diameter: 60mm;
  5. Finished product recovery rate: more than 99%;
  6. Heat source: electricity heating;
  7. Electricity power:15Kw;
  8. Machine size :2300*1300*2000mm;210kg;

Wooden package size: 2460*1400*2200mm;

Wooden package weight:300kg.

  1. Equipment material: industrial grade stainless steel food grade;

Added:  1. All electric components are interlocked control, and the fan is equipped with manual air volume regulating valve;

  1. The air inlet is equipped with a filter, and the filter frame is made of SUS304 stainless steel with protective mesh.

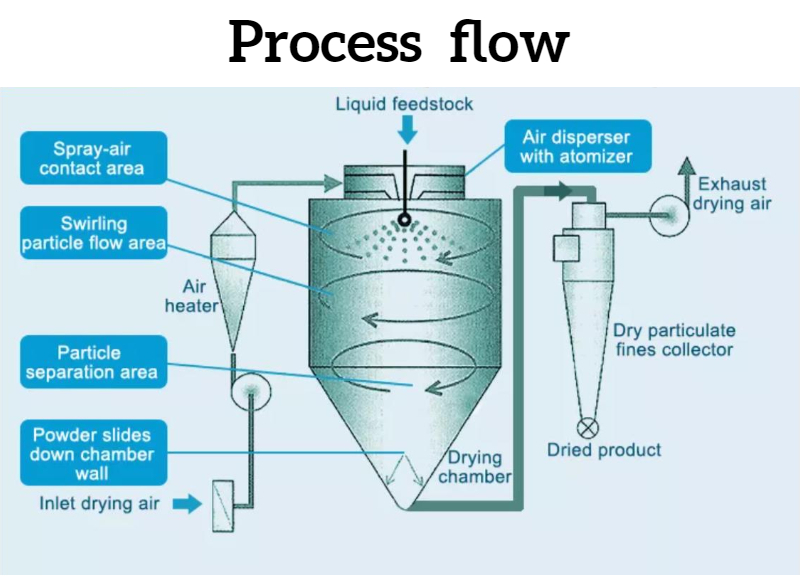

Working principle

Application
