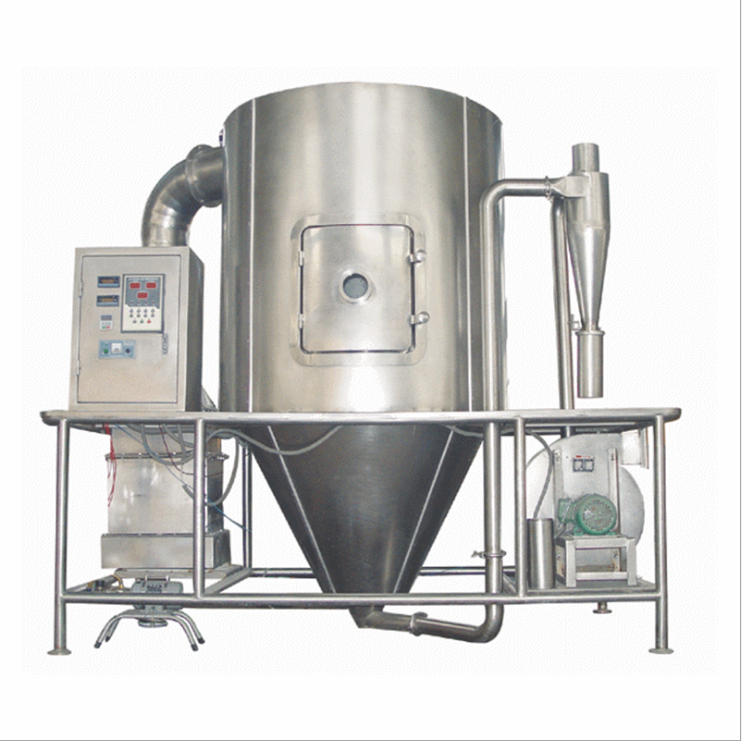

15L Spray Dryer

Name:Spray dryer

Brand:MayYiTang

Model:MYT-SP15L

Application:industrial grade stainless steel food grade.

Reference parameters

Name: Spray dryer;

Brand: MYTuger Rango;

Model: MYT-SP15L;

Voltage:380V,50/60Hz,3Phase;

Max evaporation quantity:about 15Kg/h;

Heat source: Electric Heating;

Total power about: 27Kw;

Inlet Temperature: 150-200℃(automatically controlled);

Outlet temperature:～80-100℃;

Centrifugal spraying nozzle transmission model: Mechanical transmission;

Atomizer speed: 25000rpm;

Spray disk diameter: 60mm;

Powder recovery: ≧95%;

Powder collector: 1Suit-5L;

Insulating layer:Aluminum silicate,80mm;

Equipment tower body material: industrial grade stainless steel ss304;

Moisture content of the finished product: 3-5% ;

Machine size(L*W*H):3000*2100*2150mm; 600kg;

Wooden package size: 3100*2200*2250mm;800kg;
