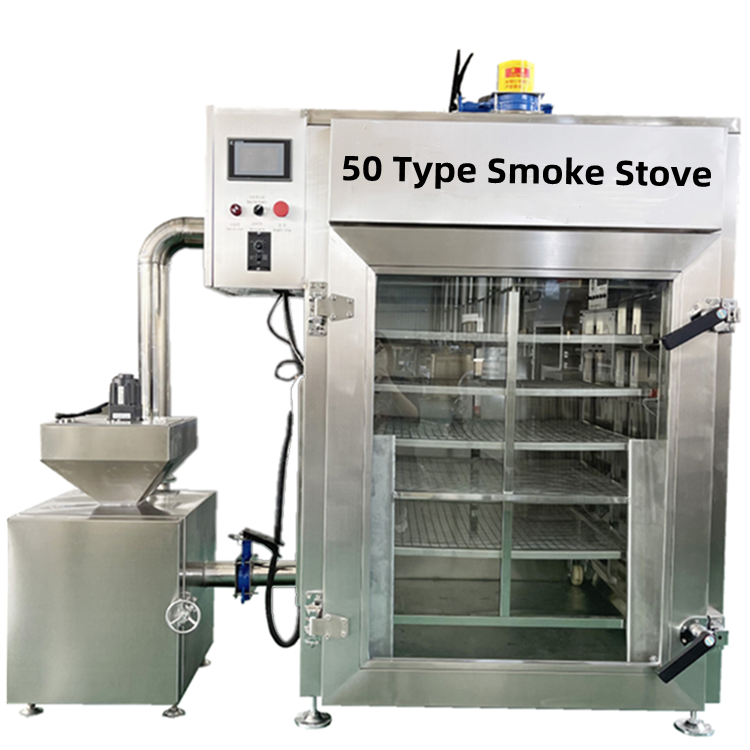

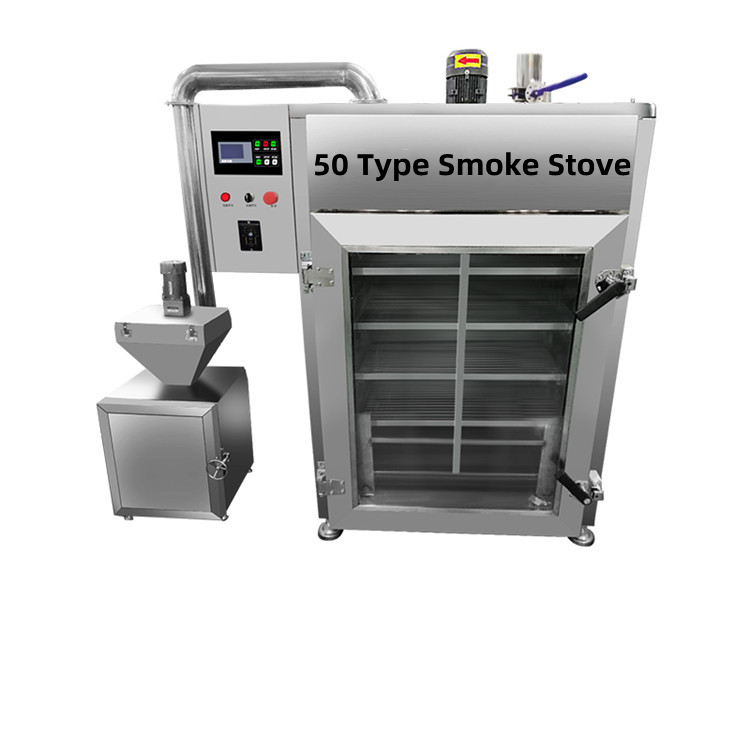

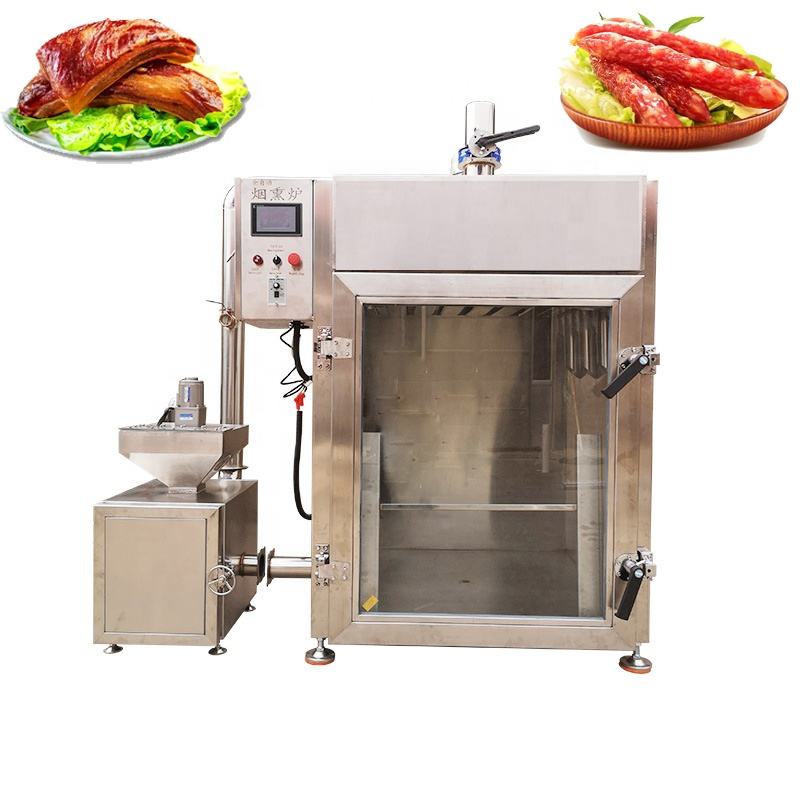

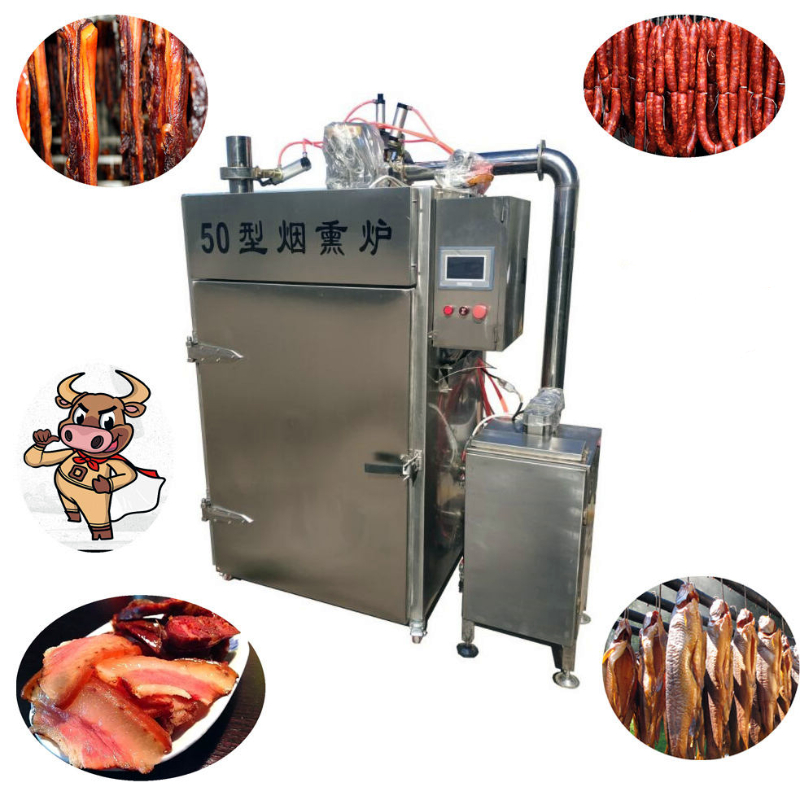

50 Type Smoking oven

Reference parameters

Name: Smoking oven;
Applying : Smoked, dried, steamed, coloured, sugared, honed, etc.;
Model: MYT-SM50;
Brand: MayYiTang;
Trolley size: 780 *900 *1050mm;
Number of trolly: 1 sets;
Heating power: 15Kw;
Voltage: 380V50Hz3P(can be customized);
Temperature range: RT-100℃;
Preferably trolleys – racks for products.
Smoking capacity: 50kg/batch(due to different raw meat materials);
Smoke generators -External Smoke generators type;
The Machine Overall dimension: LWH,2000 * 1100 * 1900mm;300kg;
Wooden package size estimate:LWH,2100*1200*2100mm,350kg;
Equipment material: industrial grade stainless steel food grade material;
